Our Insulin Syringe Making Machine is engineered for high-precision production of medical-grade insulin syringes. The machine integrates advanced injection molding technology with custom-designed molds to manufacture syringe barrels, plungers, and other components with exceptional accuracy and consistency. The injection moulding machinery and moulds are utilized for the production process of insulin syringes using medical-grade polypropylene.
.png)
.png)
.png)

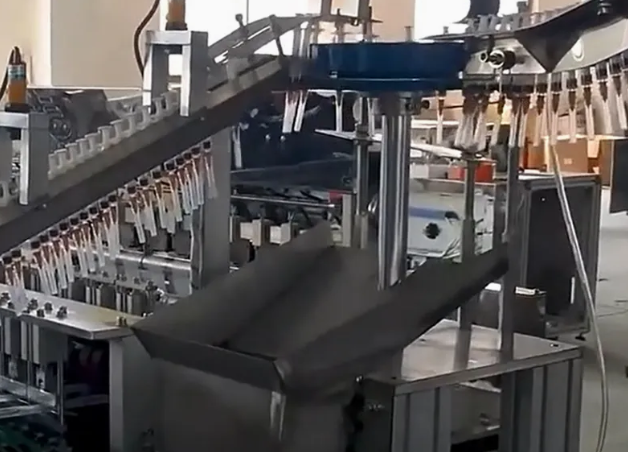

An Insulin Syringe Making Machine is a precision-engineered automatic system designed for producing ultra-fine insulin syringes used in diabetic injections. Powered by servo motors and PLC control, it ensures sterile, accurate, and high-speed medical-grade production.
| Model | DIP-INS-150A |
| Syringe Size | 0.3 ml / 0.5 ml / 1 ml |
| Production Speed | 120–150 pcs/min |
| Power Requirement | 220V, 50/60 Hz |
| Total Power | 25 kW |
| Machine Dimensions | 9000 × 1500 × 1800 mm |
| Automation Level | Fully Automatic |
| Model No. | SMT |
| Structure | Horizontal |
| Plastic Type | Thermoplastic |
| Plasticizing Way | Screw Type |
| Clamping Way | Hydraulic |
| Automation | Automatic |
| Certification | CE, ISO 9001:2008 |
| Marketing Type | Hot Product |
| Core Components | Motor, PLC, Engine |
| Material | Stainless Steel |
| Applicable Industry | Manufacturing Plant |
| Voltage | 380V |
High Production Speed
Low Maintenance
Less Man Power
After Sales Support
Medical Grade Accuracy
Service Available in India

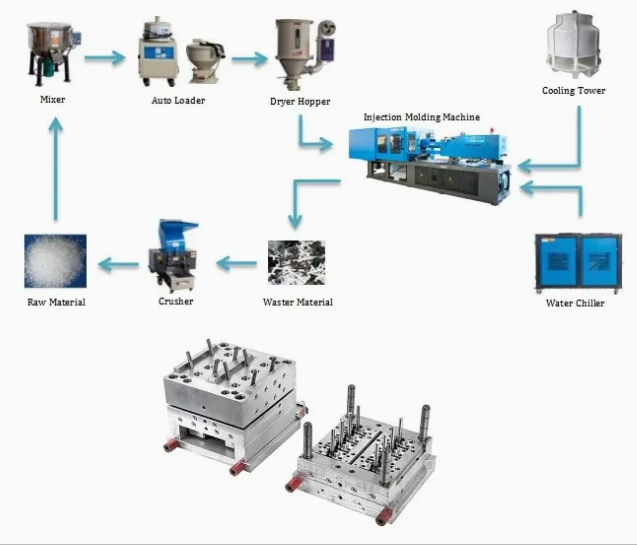

The Medical Mold and Injection Molding System is designed for high-precision manufacturing of disposable medical products such as insulin syringes, syringe barrels, plungers, and other critical components. The system ensures dimensional accuracy, smooth surface finish, and consistent output.

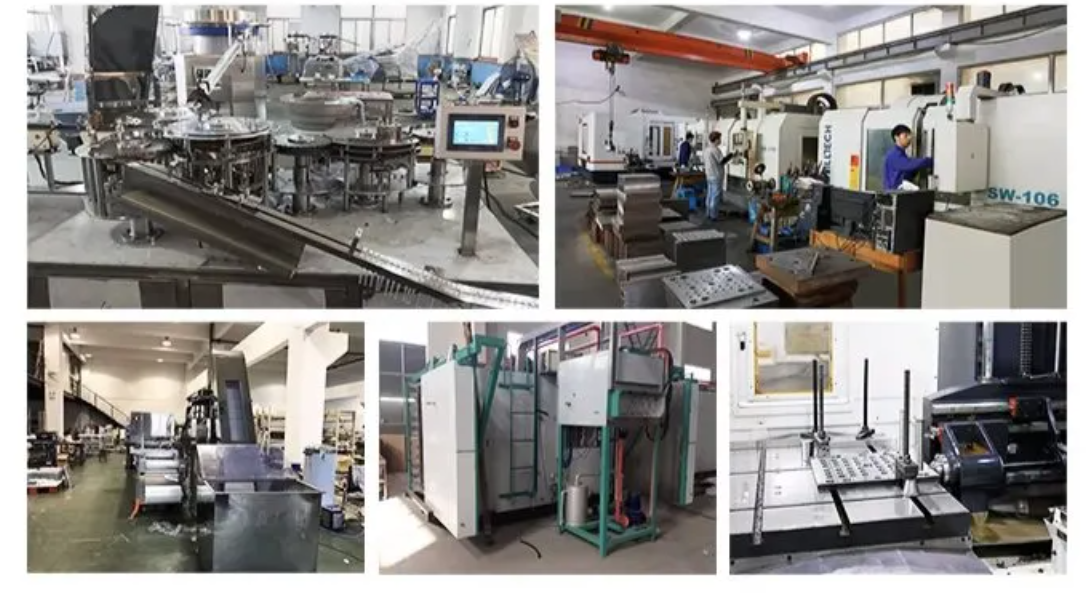

The medical mold is manufactured using advanced CNC machining and high-precision polishing processes to achieve exceptional dimensional accuracy and surface finish. These technologies ensure tight tolerances, smooth cavity walls, and consistent replication of intricate syringe components. High-grade mold steel is used to enhance durability, wear resistance, and thermal stability, resulting in an extended mold lifespan even under continuous production conditions. Each mold undergoes rigorous testing in real production environments to verify performance, cycle time efficiency, and uniform molding results. This thorough validation process guarantees reliable operation, reduced defect rates, and consistent output quality that meets international medical manufacturing standards.

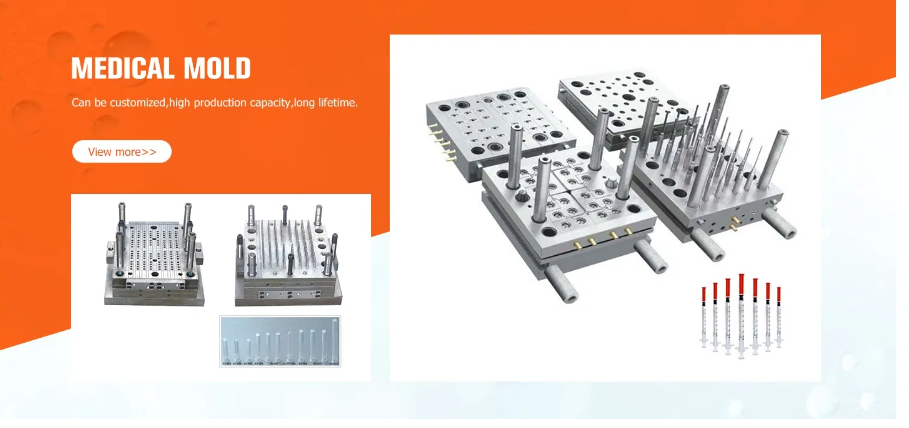

Medical Mold Mold Specifications: Features include multiple cavities and semi-hot or colder runners. Application: Syringe Parts(barrrel+plunger+gasket+needle hub+needle cap) Infusion and Transfusion Set Parts( drip chamber+ spike+spike cap+slider+roller+air plug+connector+filter ring etc) Cavity: Multiple at the seller's options or to be customized Mold Steel: P20/P20H/S136 etc, can be customized Advantages High Production Efficiency: Optimized mold design and short cycle time increase output per machine. Consistent Quality: Precision machining and strict QC control ensure that each product meets ISO medical standards. Cost-Effective: Long mold lifespan reduces replacement frequency and maintenance costs. Customization: Molds can be tailored for specific syringe or infusion set types, including 2-part or 3-part syringes, and gravity or various infusion sets.

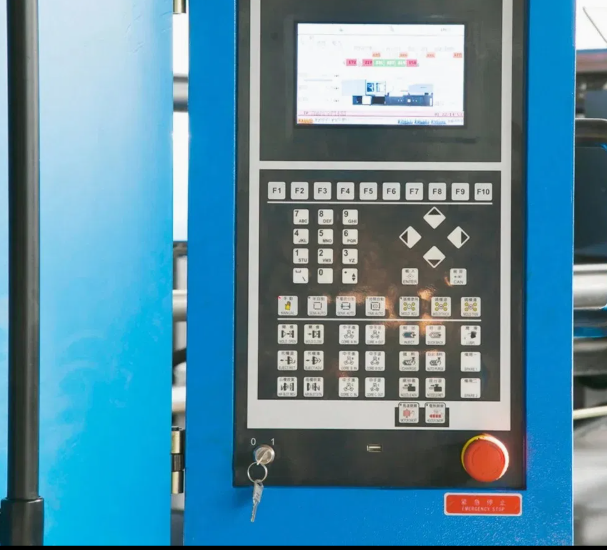

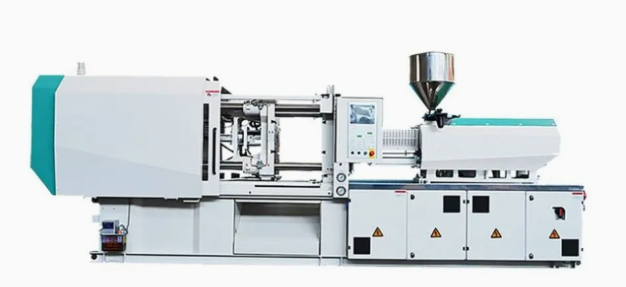

The injection molding machine features a horizontal structure, hydraulic clamping system, and PLC-controlled automation. It supports thermoplastic materials such as polypropylene (PP) and delivers stable operation with low energy consumption. The machine is designed for easy operation, maintenance, and mold changeover, making it ideal for high-volume production of insulin syringes and related medical components. It complies with CE and ISO 9001:2008 standards, ensuring suitability for global markets. After-sales support includes installation, training, and maintenance services across India and select international locations.
This machine is designed to process thermoplastic materials such as polypropylene (PP), which are widely used in medical-grade syringe manufacturing.
Yes, the machine is fully automatic and controlled through a PLC system, ensuring consistent production, reduced manpower, and high efficiency.
The machine is manufactured in compliance with CE and ISO 9001:2008 standards, making it suitable for global markets.
We provide installation support, operator training, preventive maintenance guidance, and after-sales service support across India and selected international locations.
Yes, the machine configuration and mold design can be customized based on syringe size, production capacity, and specific customer requirements.
